Maximum size: 100mm ×100mm

1/2" , 1/3" , 1/4" Quartz Silicon glass

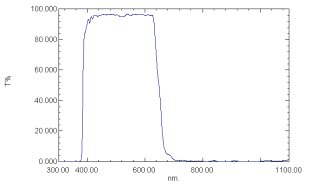

Average transmittance area Tave: >92%
Minimum transmittance Tmin: >85%

．Rejection range: 720nm-1100nm

Rejection average transmittance Tave: <1%

  Rejection maximum transmittance Tmax: <1%

． Rejection range: 850nm-1050nm

Rejection average transmittance Tave: <0.3%

Rejection maximum transmittance Tmax: <1%

．IR absorption glass rejection slope wavelength at 50% tolerance

620~640nm 80mm×80mm with various thickness

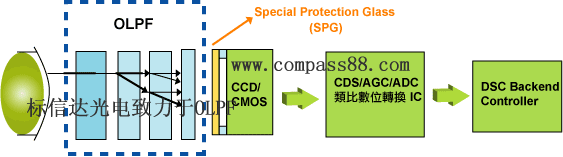

(1). OLPF IR-cut off

(2). OLPF Day/Night
