Maximum size: 80mm ×80mm various thickness
1/2" , 1/3" , 1/4" Quartz Crystal
．380-600nm
Average transmittance area Tave: >92%
Minimum transmittance Tmin: >85%
．Rejection range: 720nm-1100nm
Rejection average transmittance Tave: <1%
Rejection maximum transmittance Tmax: <1%
．Rejection range: 850nm-1050nm
Rejection average transmittance Tave: <0.3%
Rejection maximum transmittance Tmax: <1%
．IR absorption glass rejection slope wavelength at 50% tolerance
620~640nm 80mm×80mm with various thickness

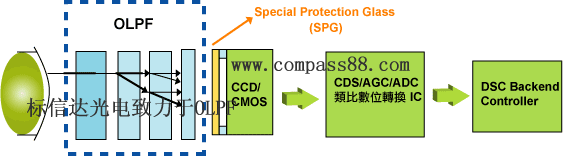

optical low pass filter, which is provided with a first birefringence plate that divides an incident ray into two rays, a second birefringence plate that divides an incident ray into two rays, and a third birefringence plate that divides an incident ray into two rays. The first birefringence plate, the second birefringence plate and the third birefringence plate are cemented to each other, light passed through the first birefringence plate passing through the second birefringence plate and then passing through the third birefringence plate. Further, a separation angle θs, representing a difference between separation directions in which adjacent ones of the first, second and third birefringence plates divide their respective incident rays, satisfies a condition 46°≦θs≦60
