Maximum size: 80mm ×80 mm Can make any Dimension

1/2" , 1/3" , 1/4" Quartz Crystal  glass

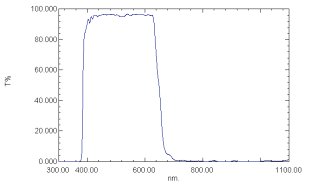

．380----620nm

   Average transmittance area Tave: >92%
   Minimum transmittance Tmin: >85%

．850nm-880nm

．transmittance area Tave: >92%850nm

．900nm-1100nm Rejection range:

  Rejection average transmittance Tave: <1%

  Rejection maximum transmittance Tmax: <1%

．IR absorption glass rejection slope wavelength at 50% tolerance

   620~640nm 80mm×80mm with various thickness
