Dichroic Mirror is usually installed on a LCD projector. Its < function is to compensate the light angle. R/G/B lights are separated by two dichroic mirrors

¡¾Applications¡¿ LCD projection system. Optical instruments.    [Features] Thermal evaporation deposition. Compensate the light angle Can change colors of lights and maintain extreme permeability. High-heat durable, non-color-fading, non-falloff. Customer designs available.

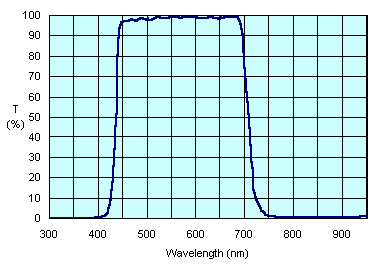

¡¾Specifications & Spectrum ¡¿

Specification

Spectral characteristics, AOI = 0¢X

Tavg. < 1%   300 ~ 420 nm

T    = 50%   425 ¡Ó 5 nm

Tavg. > 95%   440 ~ 690 nm

Tabs. > 90%   440 ~ 690 nm

T    = 50%   710 ¡Ó 7 nm

Tavg. < 1%   750 ~ 920 nm
